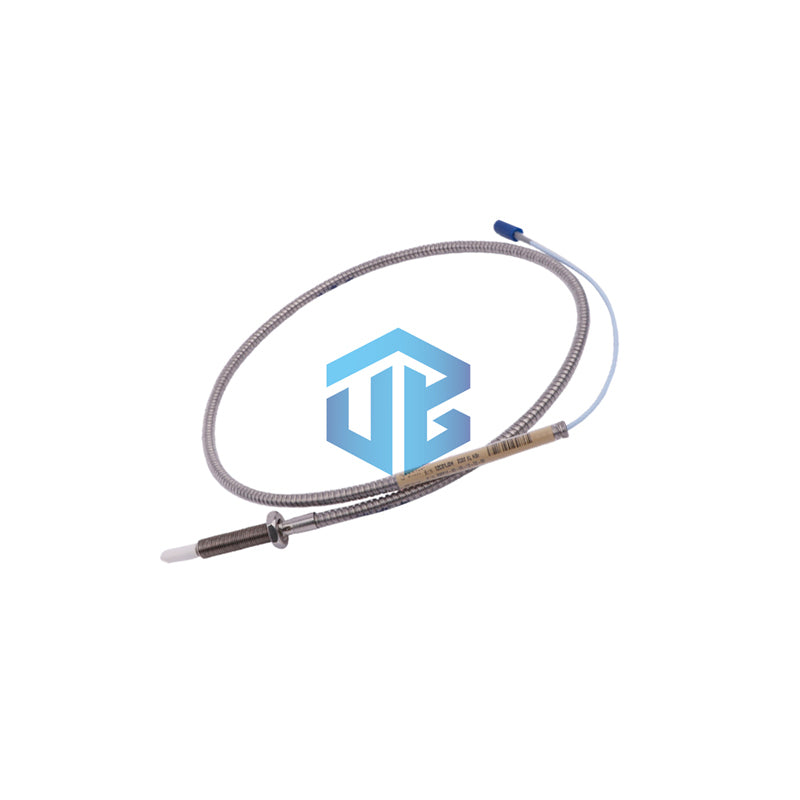

Bently Nevada 3300 NSv Premium Protected Vibration Probe
Experience superior protection with the 330904-08-15-05-11-00 from Bently Nevada. This advanced 3300 NSv probe combines FluidLoc cable with connector protection for maximum durability. Factory new condition in original packaging. Includes 12-month performance guarantee. Fast worldwide shipping via FedEx, UPS, and DHL.
Detailed Model Configuration
- 330904: Base model with M8X1 thread and armored protection
- 08: 80 mm unthreaded section for installation flexibility
- 15: 150 mm total case length for various mounting needs
- 05: 0.5 meter FluidLoc cable (20 inches) for fluid resistance
- 11: ClickLoc connector with protective cover for extra safety
- 00: Standard industrial certifications included
Comprehensive Technical Specifications
- Brand: Bently Nevada
- Product Line: 3300 NSv Vibration Monitoring Series
- Measurement Range: 1.5 mm (60 mils) full scale
- Output Voltage: -1 to -13 Vdc analog signal
- Sensitivity: 7.87 V/mm (200 mV/mil) high resolution
- Linearity: Better than ±0.06 mm precision accuracy
- Frequency Response: 0 to 10,000 Hz wide bandwidth
- Temperature Range: -52°C to +177°C extreme conditions
- Electrical Resistance: 4.0 ± 0.5 ohms at 0.5 meter length
- Cable Type: 75 ohm coaxial with FEP insulation
- Housing Material: 304 Stainless Steel rugged construction
- Tip Material: Chemical-resistant PPS polymer
- Sealing System: Viton O-ring for pressure differentials
- Minimum Target: 13 mm diameter for optimal performance
- Installation Torque: 0.56 N•m maximum hand tight
- Cable Protection: 25.4 mm minimum bend radius
- Connection Security: 5.1 N•m recommended connector torque
- Cable Capacitance: 69.9 pF/m typical value
- Extension Cable Resistance: 0.220 Ω/m center conductor
System Compatibility
This 3300 NSv probe offers full compatibility with previous 3300 RAM systems. The enhanced protection features make it ideal for demanding industrial applications.
Package Contents
- Genuine Bently Nevada 330904 vibration probe
- Original manufacturer protective packaging
- 12-month comprehensive warranty coverage
Access complete technical documentation: Download Full Product Datasheet
