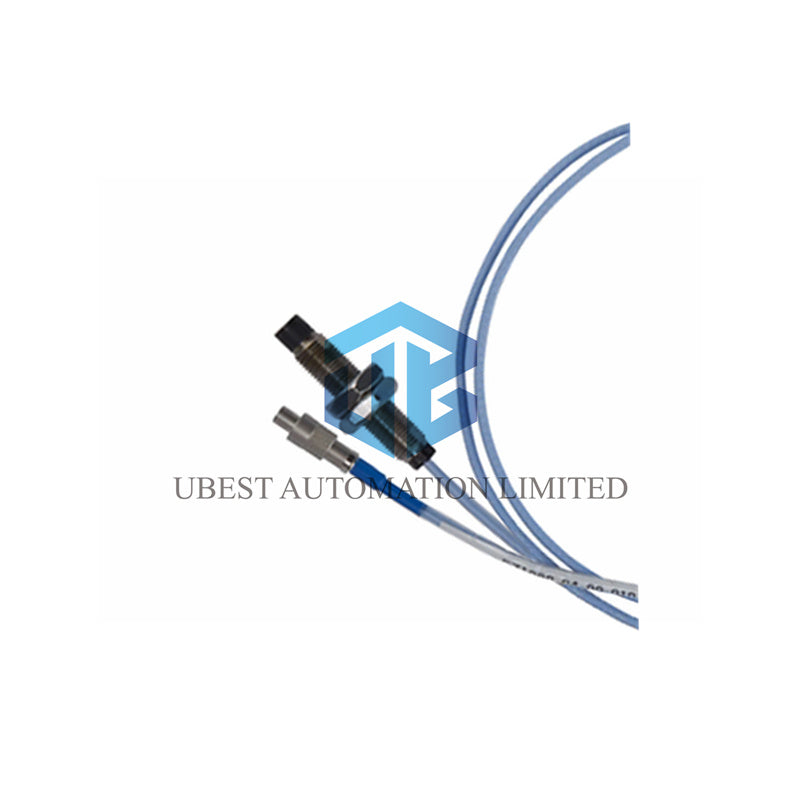

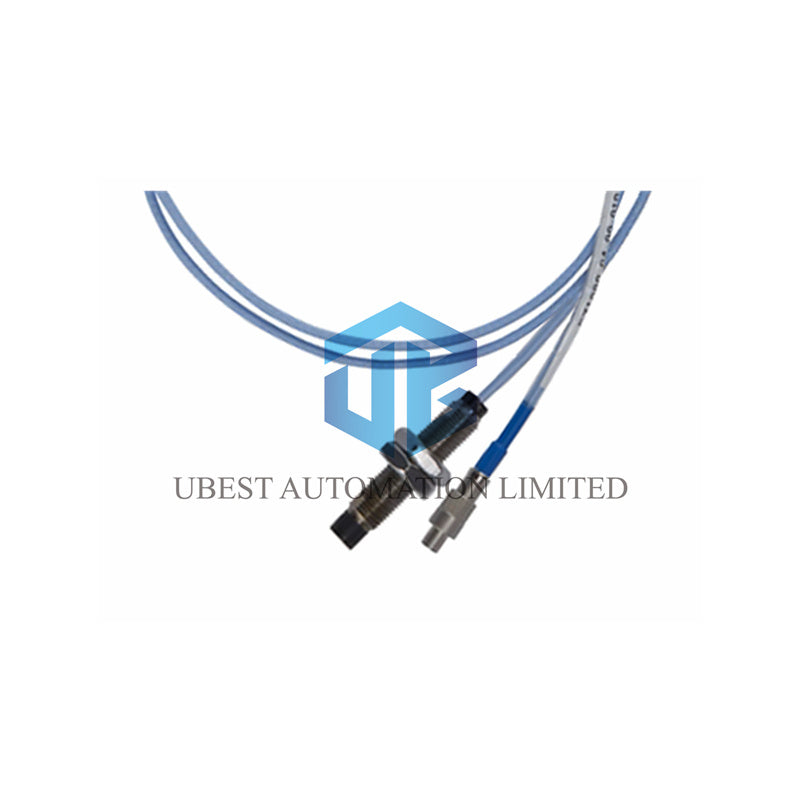

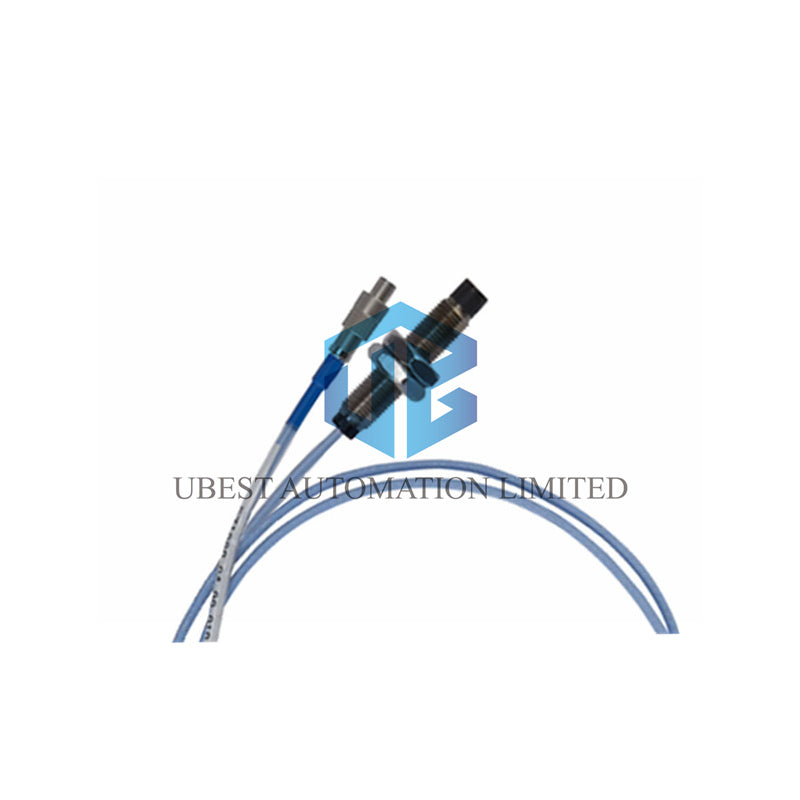

Emerson EZ1081-RM-00-010 Armored Eddy Current Sensor
Heavy-duty reverse mount sensor with armored cable protection. Built for tough industrial environments where cable durability matters most.
- Armored Cable for maximum protection
- Reverse Mount design for flexible installation
- M10x1 Thread for easy mounting
- IP67 Rated against dust and water
- 1-meter Cable ready for immediate use
Technical Specifications
- Brand: Emerson
- Model: EZ1081-RM-00-010
- Sensor Type: 8mm Eddy Current
- Mounting: Reverse Mount (RM)
- Cable Type: Armored
- Cable Length: 1.0 meter
- Thread Size: M10 x 1mm
- Measurement Range: 2.0 mm
- Initial Gap: 0.5 mm
- Accuracy: ±0.025 mm
- Temperature Range: -35°C to +180°C
- Response Frequency: 0 to 10 kHz
- Supply Voltage: -18 to -26 VDC
- Output Range: -2 to -18 VDC
- Target Material: Carbon steel, stainless steel
- Minimum Target: 14mm diameter
- Weight: Approximately 120 grams
Installation Guide
- Use reverse mounting configuration
- Maintain 0.5mm air gap from target
- Ensure target material is ferromagnetic steel
- Keep sensing area clean and free from debris
- Use proper mounting tools for M10x1 thread
Application Areas
- Turbine vibration monitoring
- Compressor shaft displacement
- Pump bearing condition monitoring
- Gearbox performance measurement
- Industrial machinery protection
Frequently Asked Questions
What does reverse mount mean for the EZ1081-RM-00-010?
Reverse mount allows installation from the back side, giving more flexibility in tight spaces.
How does armored cable differ from standard cable?
Armored cable has extra metal protection against crushing, cutting, and abrasion damage.
What is the maximum cable length for reliable operation?
For best performance, we recommend cable lengths under 10 meters with proper shielding.
Can this sensor work with non-metallic targets?
No, it requires ferromagnetic materials like steel for accurate measurements.
What maintenance does the EZ1081-RM-00-010 require?
Just keep the sensor tip clean and check the cable armor regularly for damage.
