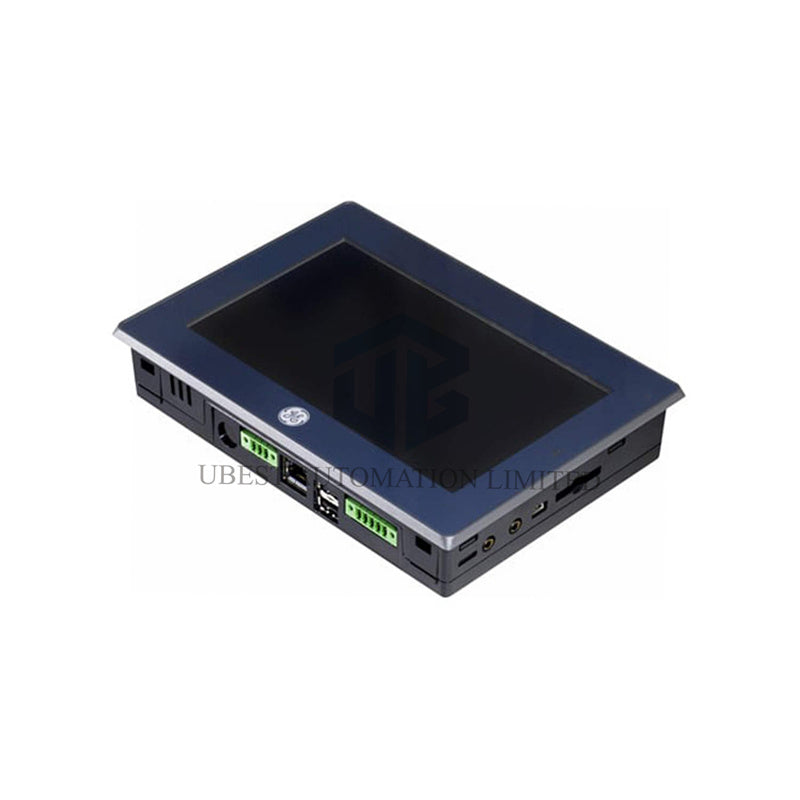

GE Fanuc IC755CSS10CDACA Quickpanel+ 10.4-inch Operator Interface

The IC755CSS10CDACA is a robust HMI from GE Fanuc Emerson's Quickpanel+ series. This operator interface features a compact design that saves panel space in industrial environments. Its high-performance touchscreen provides excellent process visibility and reliable control for your operations.

Key Technical Specifications

• Brand & Model: GE Fanuc Emerson, Quickpanel+ IC755CSS10CDACA
• Display: 10.4-inch TFT LCD with 800×600 resolution (65,536 colors)
• Brightness: 400 cd/m² with LED backlight for clear viewing
• Touchscreen: Projective capacitive, supports two-point multi-touch
• Processor: Freescale i.MX535 1GHz ARM Cortex A8
• Memory: 1GB DDR3 RAM, 512MB ROM, 512KB battery-backed SRAM
• Connectivity: 2× Ethernet ports, 2× serial ports, 3× USB 2.0 ports
• Expansion: SD/SDHC card slot for additional storage

Environmental Specifications

• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Power Supply: 12/24V DC, 1.5/0.75A, 18W maximum consumption
• Battery: Built-in lithium battery for memory backup

Installation & Mounting

• Mounting Options: Panel-mount or VESA base mounting
• Weight: 15 lbs (6.8 kg) for installation planning
• Dimensions: Compact design for minimal panel space requirements
• Ventilation: Requires proper ambient ventilation for optimal operation

Communication & Interfaces

• Ethernet Ports: 2× 10/100BaseT RJ-45 ports for network connectivity
• Serial Ports: 1× RS-232 UART and 1× RS-232/485 configurable port
• USB Ports: 2× USB 2.0 Type-A host ports, 1× USB 2.0 Mini Type-B
• Status Indicators: LEDs for system status monitoring

Package Contents

• IC755CSS10CDACA operator interface unit
• Lithium backup battery
• Serial port connector and power connector
• 4 mounting brackets for secure installation
• Protective sheet and sealing gasket
• All necessary hardware for installation

Shipping Information

• Available Carriers: FedEx, UPS, DHL for global shipping
• Packaging: Secure industrial packaging to prevent transit damage
• Delivery: Worldwide shipping with tracking information provided

Frequently Asked Questions

• What is the display resolution?
• 800×600 pixels WVGA resolution
• How many colors does it support?
• 65,536 colors for detailed graphics
• What type of touchscreen is it?
•  Projective capacitive multi-touch screen
• Is there memory backup?
• Yes, 512KB SRAM with battery backup
• What are the communication options?
•  Ethernet, serial, and USB connectivity
• What is the screen size?
•  10.4-inch diagonal measurement
