ABB TZIDC-120 Smart Positioner V18345-1010251001

Disponibile
Manufacturer:
ABB
Product No.:
V18345-1010251001
Condition:
In Stock
Product Type:
Intelligent Valve Positioner
Product Origin:
DE
Weight:
500g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Fornitore Globale Affidabile di Parti per Automazione

Offriamo un'ampia gamma di pezzi di ricambio per automazione industriale disponibili in magazzino. Tutti i prodotti sono coperti da una garanzia di 12 mesi e da un rimborso di 30 giorni per problemi di qualità.

Chi Siamo | Contatti

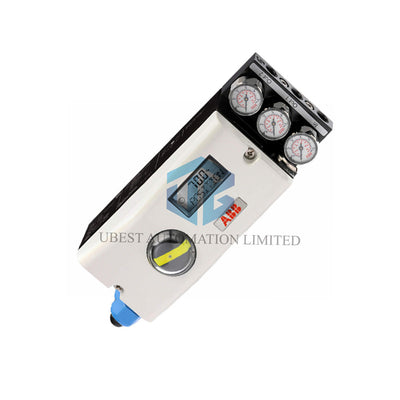

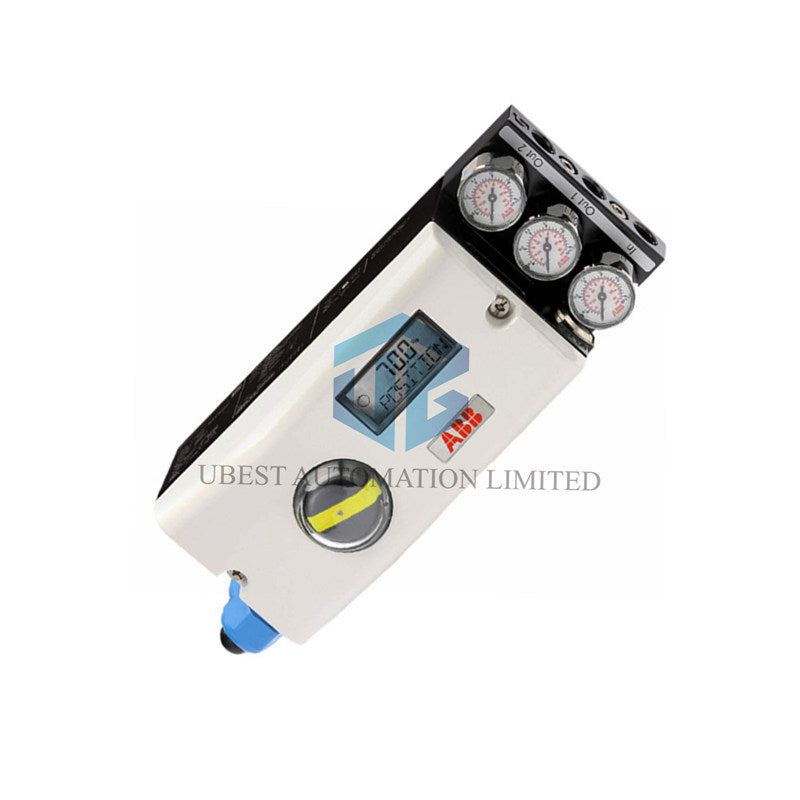

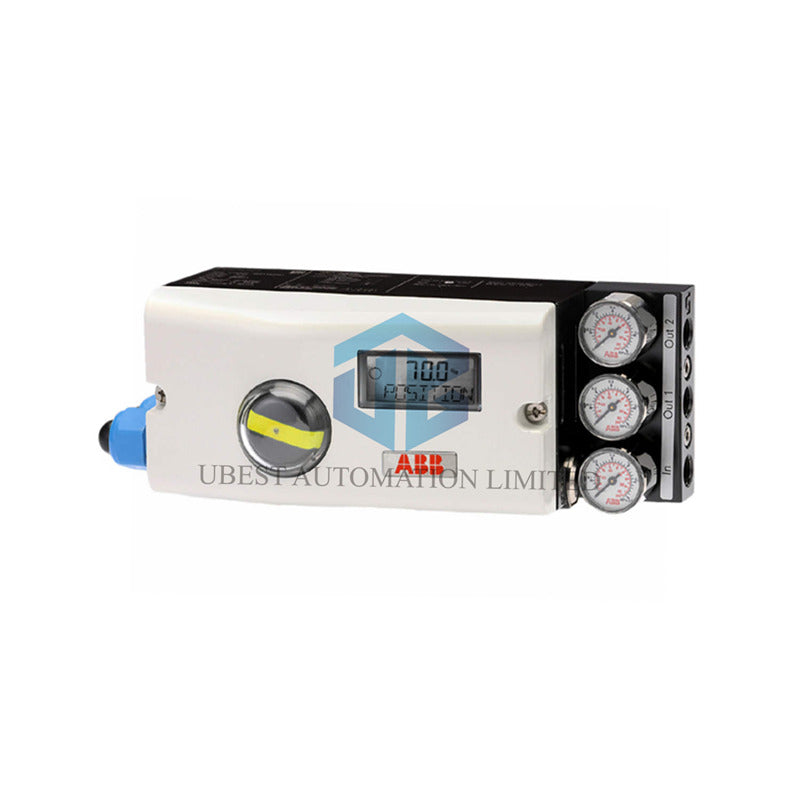

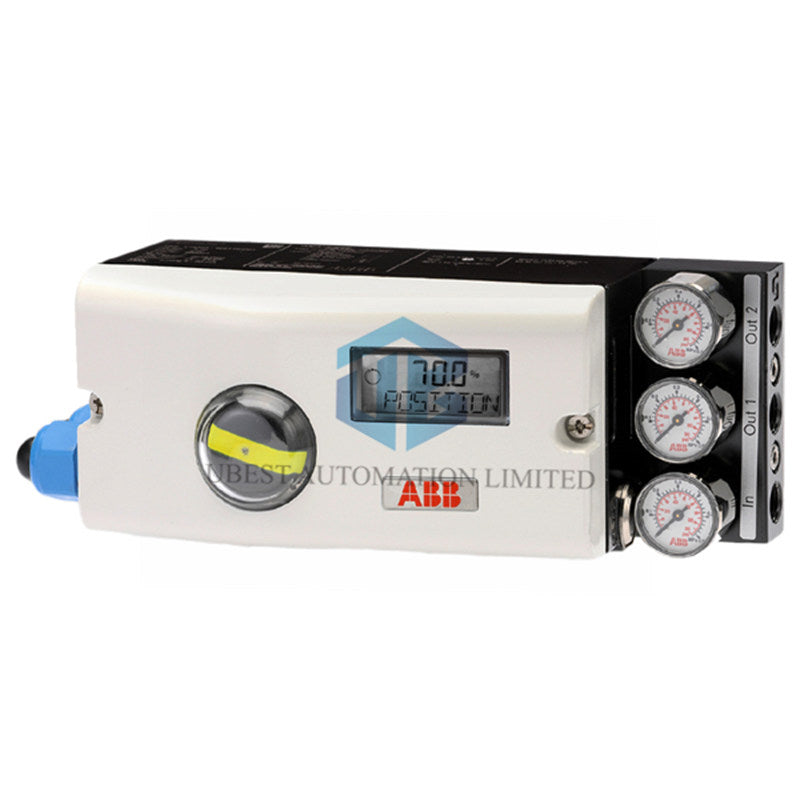

ABB TZIDC-120 Intelligent Valve Positioner – V18345-1010251001

Meet the ABB V18345-1010251001. This smart positioner gives you precise valve control. It is easy to configure and has a clear operator panel. The robust IP65 aluminum case protects against dust and water. It works with both linear and rotary actuators. Enjoy reliable performance in your automation system.

Complete Model Code Breakdown: V18345-1010251001

Each digit in the part number defines a key feature:

  • V18345: Core intelligent positioner unit with display.
  • 2 (Mech. kit): Aluminum IP65 case for linear(DIN/IEC 534) or rotary(VDI/VDE 3845) mounting.
  • 0: Standard placeholder.
  • 1 (Input): Standard 4-20 mA two-wire input with plug.
  • 0 (Ex protection): Non-explosion proof version.
  • 2 (Safe position): Single-acting output with fail-freeze.
  • 5 (Connections): M20 x 1.5 cable gland, 1/4" NPT air thread.
  • 1 (Option module): Built-in analog 4-20 mA position feedback.
  • 0 (Digital kit): No digital feedback module included.
  • 0: Standard placeholder.
  • 1 (Design): Standard color and finish.

Key Technical Specifications

  • Brand & Model: ABB V18345-1010251001
  • Input Signal: 4 to 20 mA, two-wire.
  • Supply Air Pressure: 1.4 to 6 bar (20 to 90 psi).
  • Air Consumption: Very low, < 0.03 kg/h.
  • Characteristic Curve: Linear, equal percentage, or fully customizable.
  • Accuracy (Char. Deviation): ≤ 0.5 %.
  • Resolution: High, > 4000 steps.
  • Ambient Temp. Effect: ≤ 0.5% per 10°C change.
  • Safe State: Fail-freeze on power loss.
  • Enclosure: Aluminum, IP65 / NEMA 4X rated.
  • Mounting: Compatible with DIN/IEC 534 and VDI/VDE 3845 standards.

Installation & Compatibility Guide

This positioner fits many actuators. Use it on linear valves per NAMUR standards. It also works on rotary valves per VDI/VDE 3845. The M20 connection makes wiring simple. Always use clean, dry air supply. Mounting orientation does not affect its performance.

Reliable Support & Warranty

Your order includes all necessary hardware. We back this product with a solid 12-month warranty. It covers any factory defects. We ship worldwide via FedEx, UPS, and DHL for fast delivery.

Frequently Asked Questions

What does 'fail-freeze' mean for this positioner?

During a power failure, it locks the air output. The valve stays in its last position.

What type of position feedback does it have?

This model includes an analog feedback module. It outputs a 4-20 mA signal representing valve position.

What are the electrical connection details?

It uses an M20 x 1.5 cable gland for the 4-20 mA signal wires.

Can I change the control characteristic?

Yes. You can select linear, equal percentage, or create a custom curve with 20 points.

Is it suitable for high-vibration areas?

Yes. It tolerates vibration up to 10 g and meets seismic standards for strong earthquakes.
