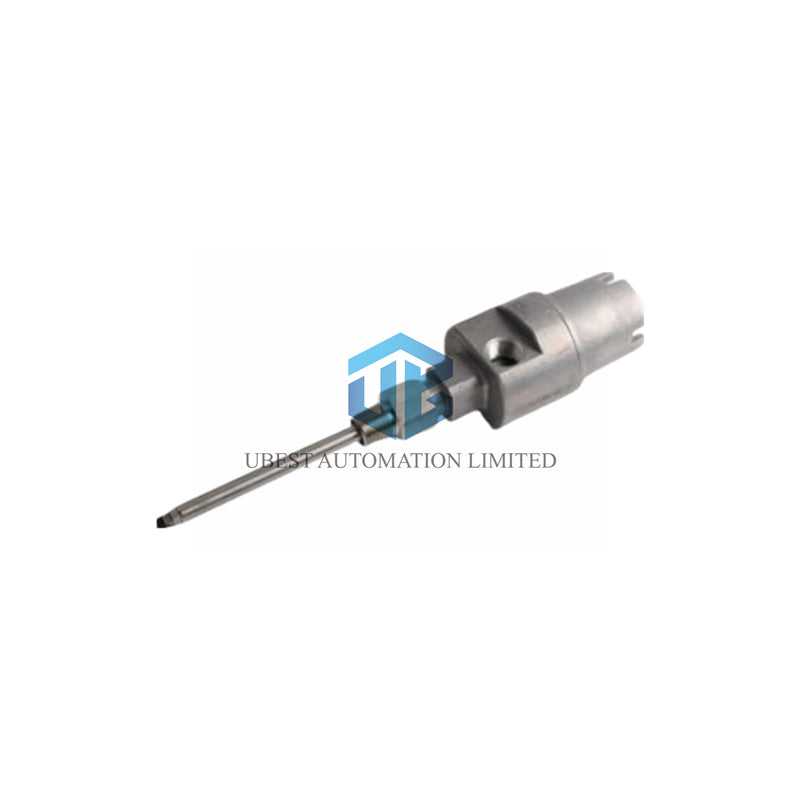

Bently Nevada 21000-34-05-30-065-03-02 Probe Housing Assembly
UBEST – Fornitore Globale Affidabile di Parti per Automazione
Offriamo un'ampia gamma di pezzi di ricambio per automazione industriale disponibili in magazzino. Tutti i prodotti sono coperti da una garanzia di 12 mesi e da un rimborso di 30 giorni per problemi di qualità.
Genuine Bently Nevada Proximity Probe Housing Assembly
New and original Bently Nevada 21000-34-05-30-065-03-02 proximity probe housing. Perfect for industrial monitoring. This assembly comes in factory packing with a full 12-month warranty. Ready for safe and reliable installation in demanding environments.
Full Product Specifications
- Brand: Bently Nevada
- Model Series: 21000 - Proximity Probe Housing Assembly
- Full Part Number: 21000-34-05-30-065-03-02
Complete Part Number Breakdown
Understand every detail of your order with our suffix code explanation:
- 34 - 3300 XL 8mm probe with connector protector. Approved for hazardous areas.
- 05 - Probe cable length is 0.5 meters (20 inches).
- 30 - Standoff adapter length is 3.0 inches.
- 065 - Probe penetration depth is 6.5 inches.
- 03 - Fitting kit includes NPT plugs, reducer, and cable seal grips.
- 02 - Mounting thread is 3/4-14 NPT.
Technical Data & Core Features
- Housing Material: Aluminum body with 304 stainless steel sleeve.
- Total Weight: Approximately 1.1 kg (2.4 lb) without fittings.
- Max Extension (C+D): 13.5 inches (34.3 cm).
- Probe Visibility: Probe part and serial numbers are not visible when installed.
- Key Function: Houses and protects reverse mount proximity probes for vibration and position monitoring.
Compliance & Safety
This housing assembly meets strict industry standards. It carries CSA approvals for hazardous areas. The design fully complies with API 670 standards for external mounting. It is certified as a CSA Type 4 enclosure. Ideal for intrinsically safe applications in oil and gas, and power generation.
What's In The Box?
- One complete 21000 Housing Assembly (Aluminum body, stainless sleeve, dome cover).
- One reverse mount 8mm proximity probe with 0.5m cable.
- O-rings and thread seal.
- Fitting kit per option 03: 3/4-14 NPT plug, reducer, and cable seal grips.
- Factory packaging and documentation.
Reliable Support & Service
We guarantee product quality. Your order includes a 12-month factory warranty. We ship globally via FedEx, UPS, and DHL for fast delivery. Our team provides full technical support for your installation needs.
Frequently Asked Questions
What does the "34" suffix mean in the part number?
It specifies the probe type. You get a 3300 XL 8mm probe with a connector protector. This version has selectable approvals for use in hazardous areas.
Is the standoff adapter included?
Yes. Suffix "30" means a 3.0-inch standoff adapter is included in the assembly.
What mounting thread does this housing have?
The suffix "-02" confirms the mounting thread is 3/4-14 NPT.
Is this a complete ready-to-install kit?
Yes. The assembly includes the housing, probe, all necessary seals, and the fitting kit as listed. You receive a complete solution in one box.
