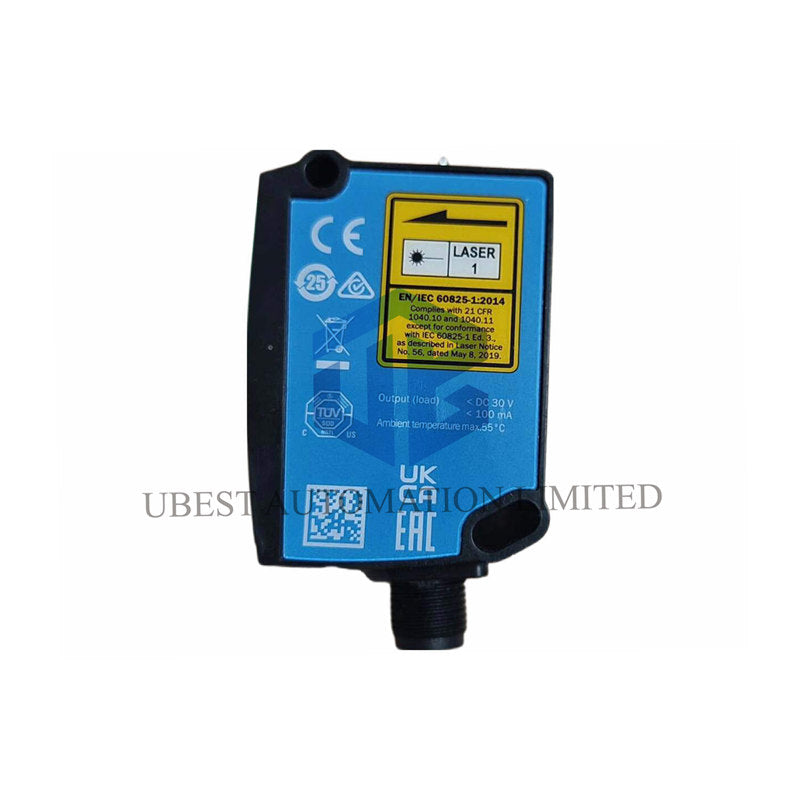

SICK DT35-B15551 Dx35 Time-of-Flight Laser Sensor
Ultra-fast and flexible distance measurement. This sensor offers long range up to 12m with high resolution. Its IO-Link and multiple outputs make it ideal for smart factory setups.
Complete Technical Specifications
Brand & Model: SICK DT35-B15551 | Dx35 Series
Measuring Range: 50 mm to 12,000 mm (90% remission)
Accuracy & Repeatability: Typ. ±10 mm / ≥0.5 mm
Resolution: 100 µm
Response Time: Configurable 4.5, 12.5, 24.5, 48.5, 192.5 ms
Outputs: 1x Analog (4-20mA/0-10V), 1-2x Digital (PNP/NPN), IO-Link
Laser Type: Visible Red, Class 1 (Safe)
Power Supply: 12-30V DC
Connection: 5-pin M12 Connector
Housing Protection: IP65 / IP67, Plastic (ABS/PC)
Operating Temperature: -30°C to +55°C
Dimensions: 32 x 58.67 x 42.7 mm (W x H x D)
Weight: 65 g
Quick Installation Guide
Mount the compact DT35-B15551 sensor using its standard bracket. Connect the 5-pin M12 cable. Apply 12-30V DC power. Use the teach-in button or IO-Link to set your measurement points and output mode easily.
Package & Warranty
Includes one SICK DT35-B15551 sensor. Comes with a 12-month product warranty for quality assurance. Fast global shipping via FedEx, UPS, or DHL.
Frequently Asked Questions
What is the main advantage of the Class 1 laser?
Class 1 is the safest laser rating. It is inherently safe under all conditions of normal use, requiring no extra safety measures in the workplace.
How do I choose the right response time setting?
For fast-moving objects, use 4.5ms. For stable, high-precision measurement in dirty environments, a slower setting like 48.5ms can provide more stable readings by filtering out noise.
Can this sensor work in freezing outdoor conditions?
Yes, it operates down to -30°C, making it suitable for many outdoor applications like logistics and bulk material handling in cold storage.
What is the benefit of having IO-Link?
IO-Link allows for remote configuration, real-time parameter changes, and advanced diagnostics. It enables easy integration into Industry 4.0 and smart factory networks for data collection.
How does the 'object between sensor and background' mode work?
In this switching mode, the sensor detects if an object passes through a defined zone between the sensor and a known background distance. It's excellent for presence detection on conveyors.
