ABB TZIDC-120 Intelligent Valve Positioner – V18345-1010221001

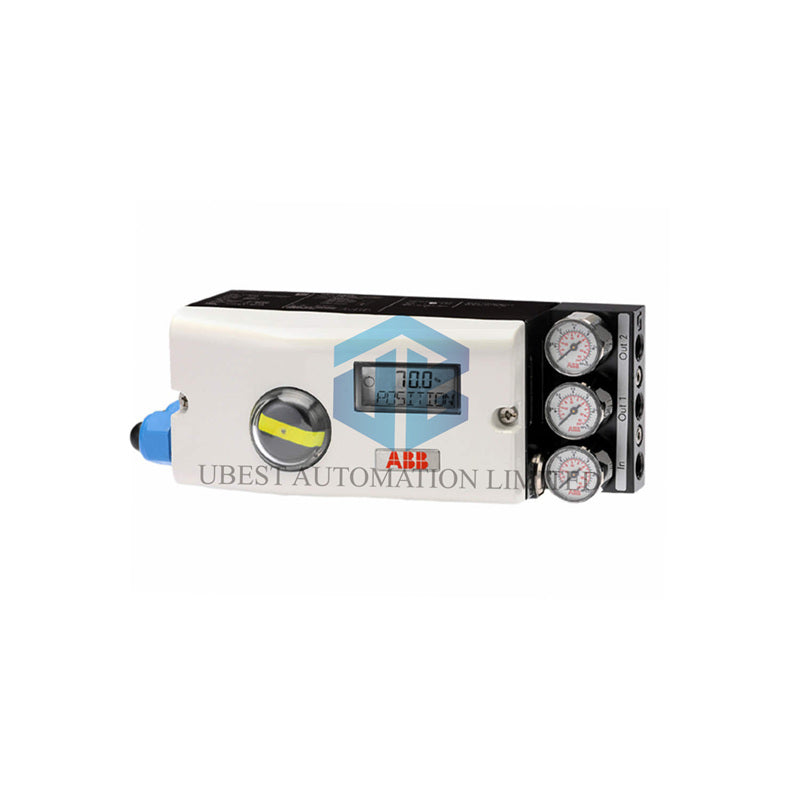

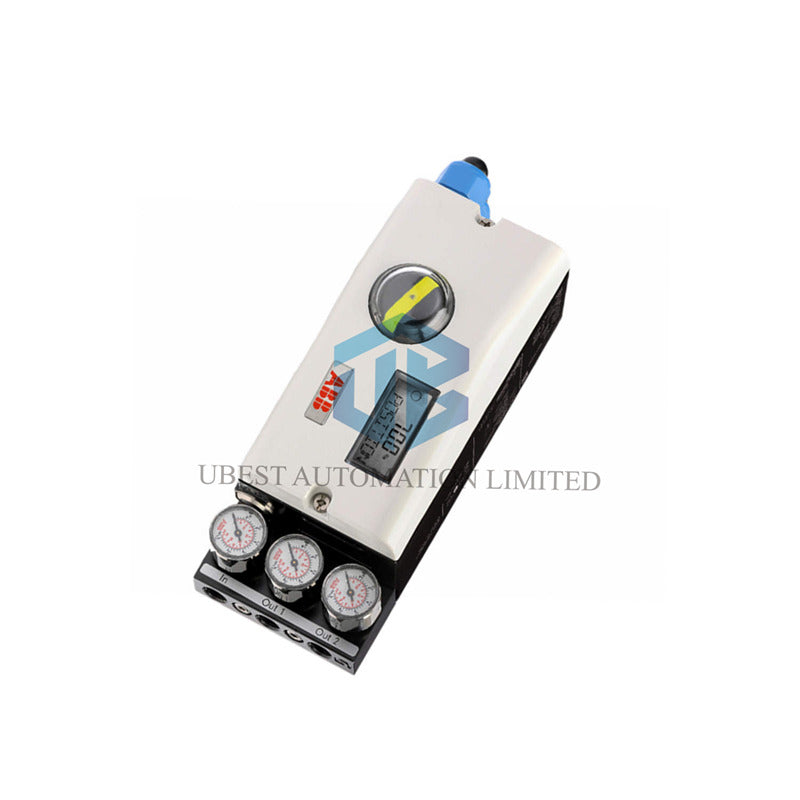

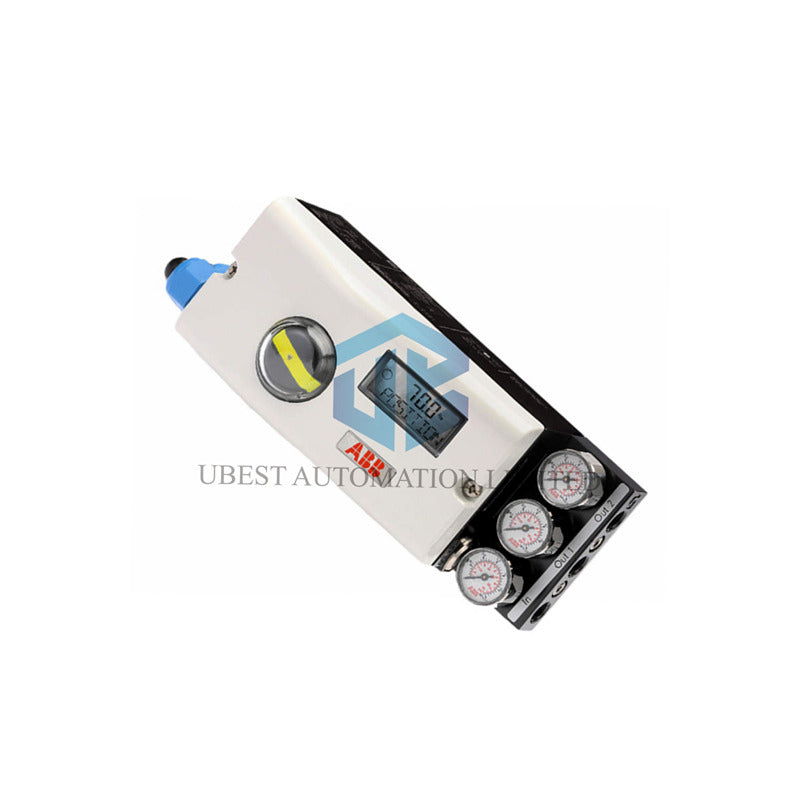

This is the ABB V18345-1010221001 valve positioner. It is a smart and configurable device. It works with linear and rotary actuators. The positioner offers precise control for your valves. It comes with an easy-to-use operator panel. The device is built tough with an IP65 aluminum case. It ensures reliable performance in industrial environments.

Full Product Code & Configuration: V18345-1010221001

Every part of the model number tells a feature:

• V18345: Intelligent positioner with indicator and operator panel.
• 1 (Optional mech. kit): Aluminum IP65 (NEMA 4X) case for mounting.
• 0: Reserved field.
• 1 (Input): 4-20 mA two-wire signal with connector plug.
• 0 (Ex protection): Standard device, without explosion protection.
• 2 (Output/Safe position): Single-acting, fail-freeze function.
• 2 (Connections): 1/2" NPT cable entry, 1/4" NPT air pipe.
• 1 (Option module): Plug-in analog position feedback (4-20 mA).
• 0 (Opt. digital kit): Without digital feedback kit.
• 0: Reserved field.
• 1 (Design): Standard finish.

Key Technical Data

• Brand & Model: ABB V18345-1010221001
• Input Signal: 4 to 20 mA, two-wire technology.
• Input Impedance: 435 Ohms at 20 mA.
• Air Output Range: 0 to 6 bar (0 to 90 psi).
• Air Capacity: Up to 10 Nm³/h at 6 bar supply.
• Safe State: Fail-freeze (air blocked on power loss).
• Position Feedback: Analog, 4-20 mA signal.
• Enclosure Rating: IP65 / NEMA 4X aluminum housing.
• Electrical Connections: 1/2" NPT.
• Pneumatic Connections: 1/4" NPT.

Installation & Compatibility

Mount this positioner easily. It fits linear actuators per DIN/IEC 534 (NAMUR). It also fits rotary actuators per VDI/VDE 3845. The kit allows integral mounting. Ensure your supply air is clean and dry.

Reliable Support & Warranty

We include all standard mounting parts. Your order comes with a full 12-month warranty. This warranty covers material and workmanship defects. We ship fast via FedEx, UPS, or DHL.

Frequently Asked Questions

What is the fail-safe action of this model?

It has a fail-freeze function. The valve stays in its last position during power loss.

Does it provide a position feedback signal?

Yes. This model includes a plug-in module. It gives a 4-20 mA analog position feedback signal.

What is the protection rating of the housing?

The aluminum case has an IP65 (NEMA 4X) rating. It protects against dust and water jets.

Can I use it with a double-acting actuator?

No. The output "2" code means single-acting output. Choose a different suffix for double-acting.

What is the minimum required supply current?

The device starts from 3.8 mA. It needs at least 3.5 mA to run with analog feedback.
