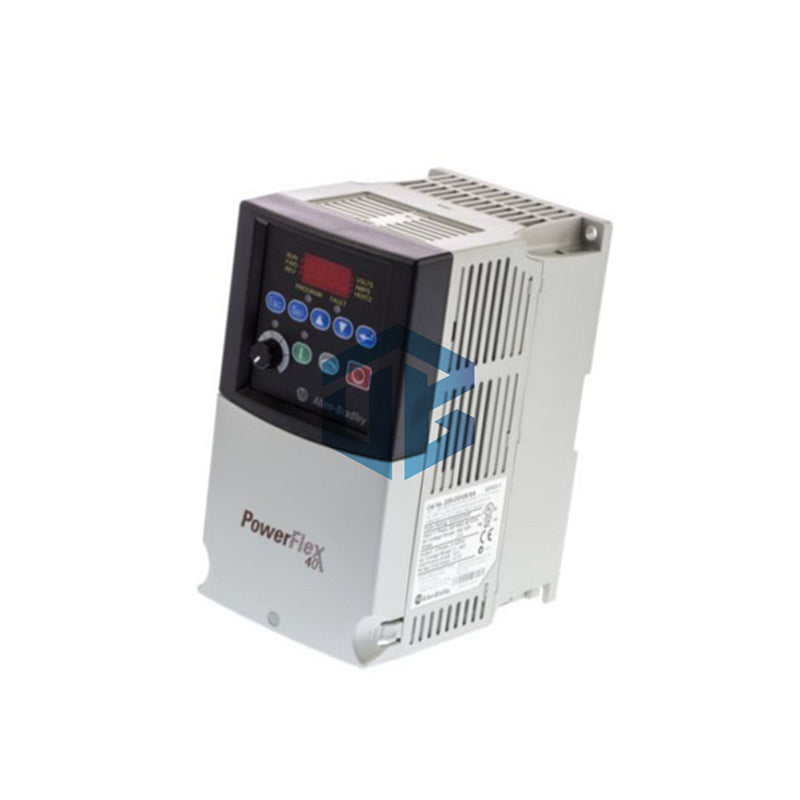

Allen-Bradley 22B-B033F104 PowerFlex 40 Drive - 10HP Motor Control Solution

Powerful Motor Performance

The 22B-B033F104 PowerFlex drive delivers robust 10HP motor control with 33A output. Perfect for industrial applications needing reliable speed regulation and torque control.

Key Features

• 10HP capacity (33A output) for heavy-duty use
• Sensorless vector control for precise torque
• Compact flange mount design saves space
• Built-in cooling fan for optimal performance
• Simple keypad programming interface
• RS-485 communication for easy integration

Technical Specifications

• Input Voltage: 200-240V AC 3-phase
• Output Power: 7.5kW (10HP)
• Frequency Range: 0-500Hz
• Operating Temp: 0-60°C (32-140°F)
• Enclosure: IP20, NEMA Open
• Dimensions: Compact Size B frame
• Weight: 1.36kg (3lbs)

Compare Similar Models

• 22B-B012C104 - 3HP model with IP66 rating
• 22B-B012H204 - Compact 3HP version

Safety & Reliability

• Meets EN 50081-2/50082-2 EMC standards
• 30g operating shock resistance
• 5-95% humidity tolerance (non-condensing)
• Overload and short-circuit protection

Package Contents

• 1 PowerFlex 40 drive unit
• Mounting hardware
• Quick start guide
• Installation manual

Expert Questions

1. Can I use this at high altitudes?
   No - maximum 2000m elevation.
2. Does it support brake resistors?
   Yes - through optional external module.
3. What's the fan speed range?
   Variable speed for 0.5-5HP loads.
4. Is encoder feedback supported?
   No - uses sensorless vector technology.
5. Can I daisy-chain multiple units?
   Yes - via RS-485 communication.

Shipping & Warranty

Fast worldwide delivery via FedEx/UPS/DHL. Your 22B-B033F104 includes 12-month warranty.
