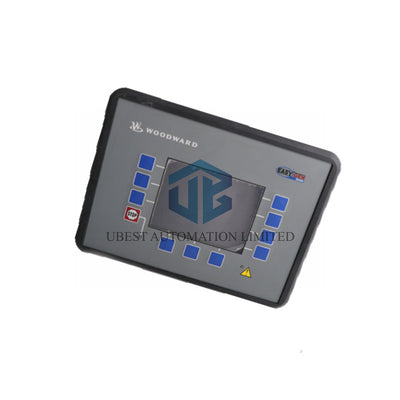

EasYgen-2500 Operator Interface: Advanced Genset Control & Protection

The EasYgen-2500 provides complete control for power generation systems. This versatile unit manages up to 32 gensets with precise monitoring and protection features.

• Fast Global Shipping - Available via FedEx, UPS, DHL
• Quality Assured - 12-month comprehensive warranty
• Multiple Models - Choose front or back panel mounting
• Easy Integration - Compatible with various communication protocols

Technical Specifications

Model: EasYgen-2500 Series (3100/3200/3400/3500)

Power Supply: 12/24 VDC (8-40 VDC range)

Power Consumption: 19W maximum

Display: Color LCD with multilingual support

Discrete I/O: 32 inputs / 32 outputs

Analog I/O: 16 inputs / 4 outputs

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Humidity Rating: 95% non-condensing

Voltage Input: 120VAC and 480VAC true RMS

Current Input: 1A or 5A true RMS, isolated

Relay Output: 2A at 24VDC, 250VAC resistive

Communication: CANopen, J1939, Modbus RTU

Enclosure Rating: IP66 front, IP20 back

Weight: 1.85kg (plastic), 2.15kg (metal housing)

Key Features

Multi-Genset Control - Manages up to 32 generators in parallel

Advanced Protection - Complete engine and generator safety

Flexible Mounting - Front or back panel installation options

True RMS Sensing - Accurate voltage and current measurement

Load Sharing - kW/kvar sharing for balanced operation

Frequently Asked Questions

What communication protocols does the EasYgen-2500 support?

It supports CANopen, J1939, Modbus RTU, and modem communication.

How many generators can one unit control simultaneously?

It can manage up to 32 gensets in parallel operation.

What is the difference between front and back panel models?

Front panel units have displays and soft keys, back panel units are for confined spaces.

Can the EasYgen-2500 work with utility grid connections?

Yes, it supports utility paralleling with import/export control features.

What type of display does the front-mounted version have?

It features a large, easy-to-read backlit LCD graphical display.

Warranty & Shipping

All EasYgen-2500 control units include 12-month warranty. We ship worldwide using FedEx, UPS, and DHL express services.
