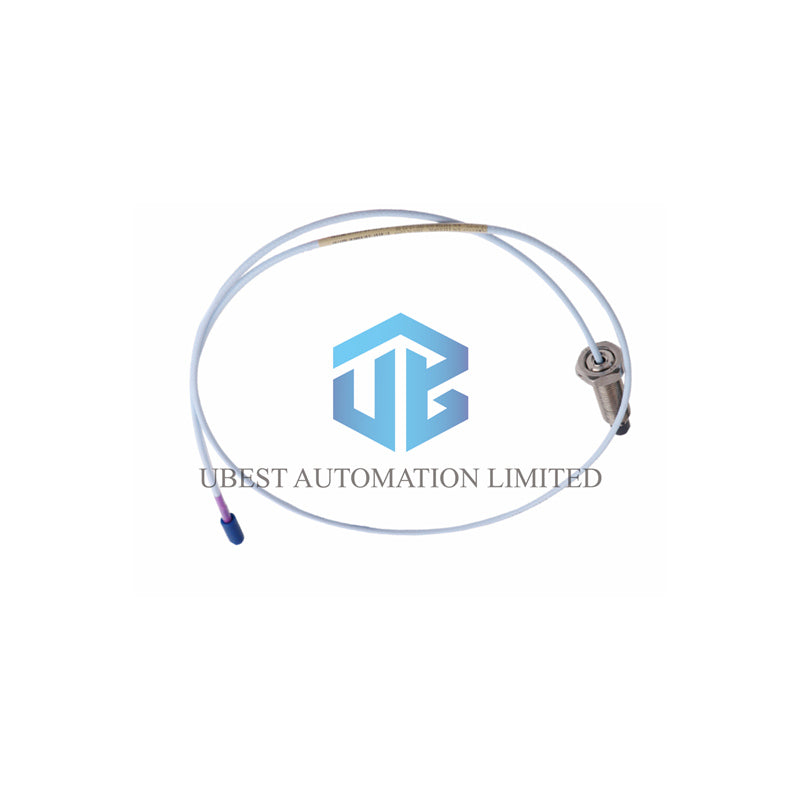

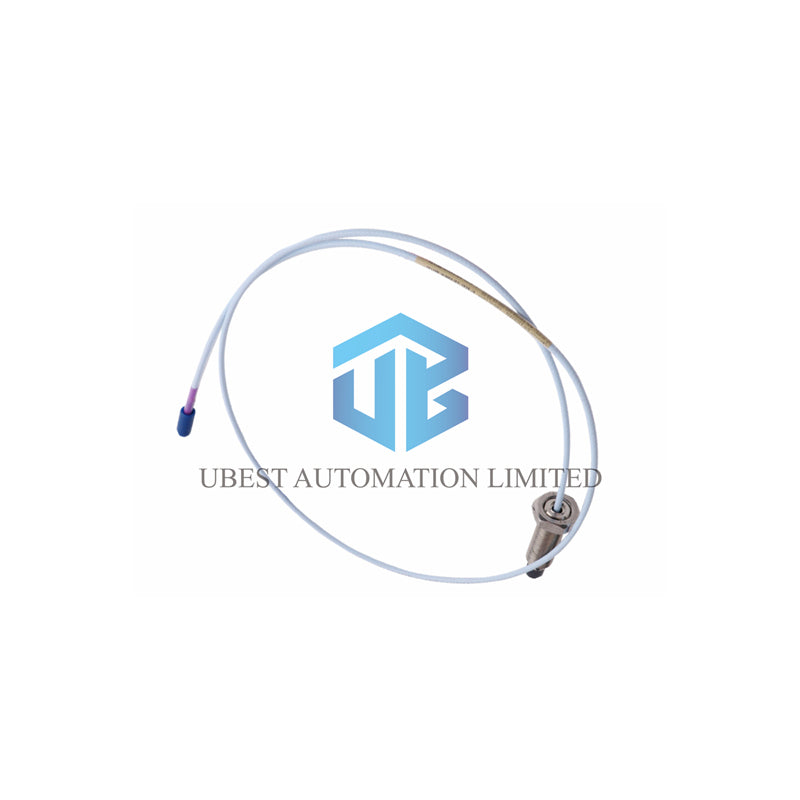

Bently Nevada 3300 XL 11mm Proximity Probe: Premium Vibration Monitoring

This Bently Nevada 330709-000-080-90-02-00 proximity probe delivers precise vibration and position measurement for industrial machinery. It ensures reliable performance in demanding environments with its robust stainless steel construction.

Product Description

The 3300 XL 11mm Proximity Probe is designed for continuous monitoring of rotating equipment. It provides accurate data to prevent machine failure. This model features an M16 x 1.5 thread and comes without armor.

Its 9-meter cable offers flexible installation. The probe operates effectively in wide temperature ranges. It is perfect for critical applications in various industries.

Complete Model Suffix Explanation

• 330709: 3300 XL 11mm Probe, M16x1.5 thread, no armor
• 000: 0 mm unthreaded length
• 080: 80 mm overall case length
• 90: 9.0 meter total cable length
• 02: Miniature coaxial ClickLoc connector, standard cable
• 00: No agency approval required

Technical Specifications

• Brand: Bently Nevada
• Model: 330709-000-080-90-02-00
• Product Type: 11mm Proximity Transducer
• Series: 3300 XL
• Thread Size: M16 x 1.5
• Case Material: 304 Stainless Steel
• Tip Material: Polyphenylene Sulfide (PPS)
• Cable Length: 9.0 meters (29.5 feet)
• Cable Type: 75Ω triaxial, FEP insulated
• Connector: Miniature coaxial ClickLoc
• Probe Resistance: 8.5 ± 1.1 ohms
• Minimum Target Size: 30.5 mm flat surface
• Minimum Shaft Diameter: 152 mm
• Operating Temperature: -52°C to +177°C
• Case Torque: 21.1 N•m (187 in•lb)
• Bend Radius: 25.4 mm minimum

Installation Guide

• Use proper torque for case installation
• Ensure minimum 25.4 mm bend radius for cable
• Maximum thread engagement: 24 mm
• Finger tight connector installation only
• Avoid temperatures below -34°C for seal protection
• Follow recommended minimum target sizes

Compatibility Information

This probe works with Bently Nevada 3300 XL monitoring systems. It is compatible with standard mounting configurations. The miniature ClickLoc connector ensures secure connection.

Shipping & Packaging

• We ship via FedEx, UPS, and DHL
• Package includes: Probe unit with connector
• Standard protective packaging
• Fast worldwide delivery

Warranty Information

This product comes with 12 months warranty from date of purchase. Warranty covers manufacturing defects. Contact us for warranty claims.

Download Documentation

Get the complete datasheet for detailed specifications: Download Datasheet PDF

Compare With Similar Models

• 330709-000-060-50-01-00 - 5m cable, different connector
• 330709-000-060-50-01-05 - 5m cable, agency approval
• 330709-000-060-50-11-00 - 5m cable, different approval

Frequently Asked Questions

What is the cable length of this probe?

This model has a 9.0 meter cable length.

What connector type does it use?

It uses a miniature coaxial ClickLoc connector.

What is the operating temperature range?

It operates from -52°C to +177°C.

What is the minimum target size?

Minimum 30.5 mm flat surface diameter.

Is this probe armored?

No, this model comes without armor.
